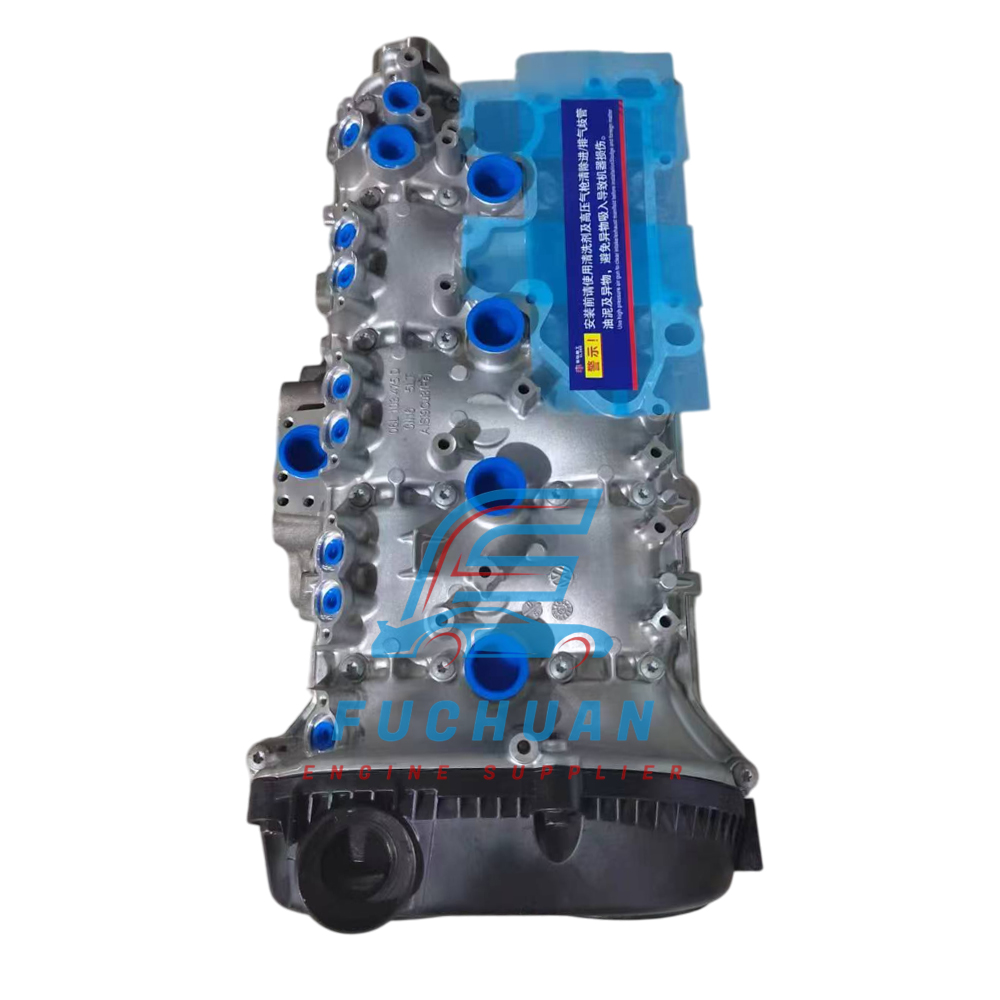

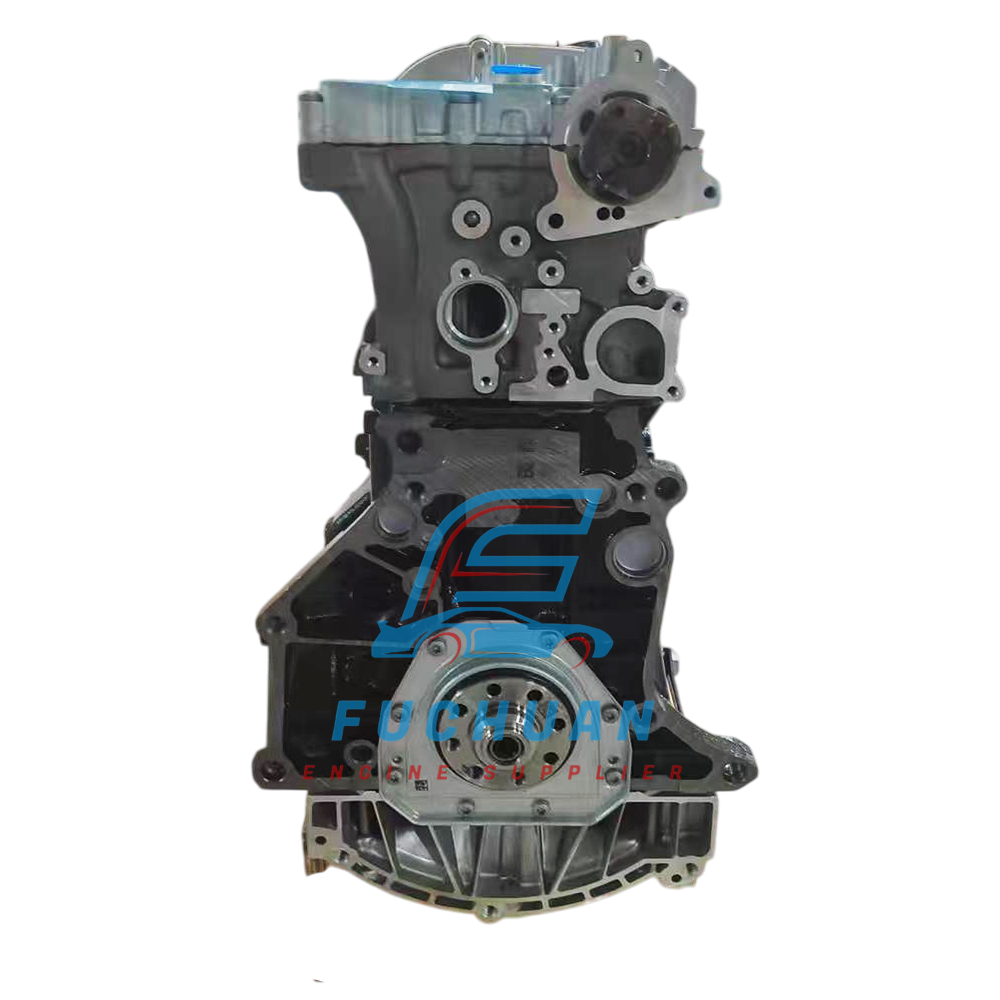

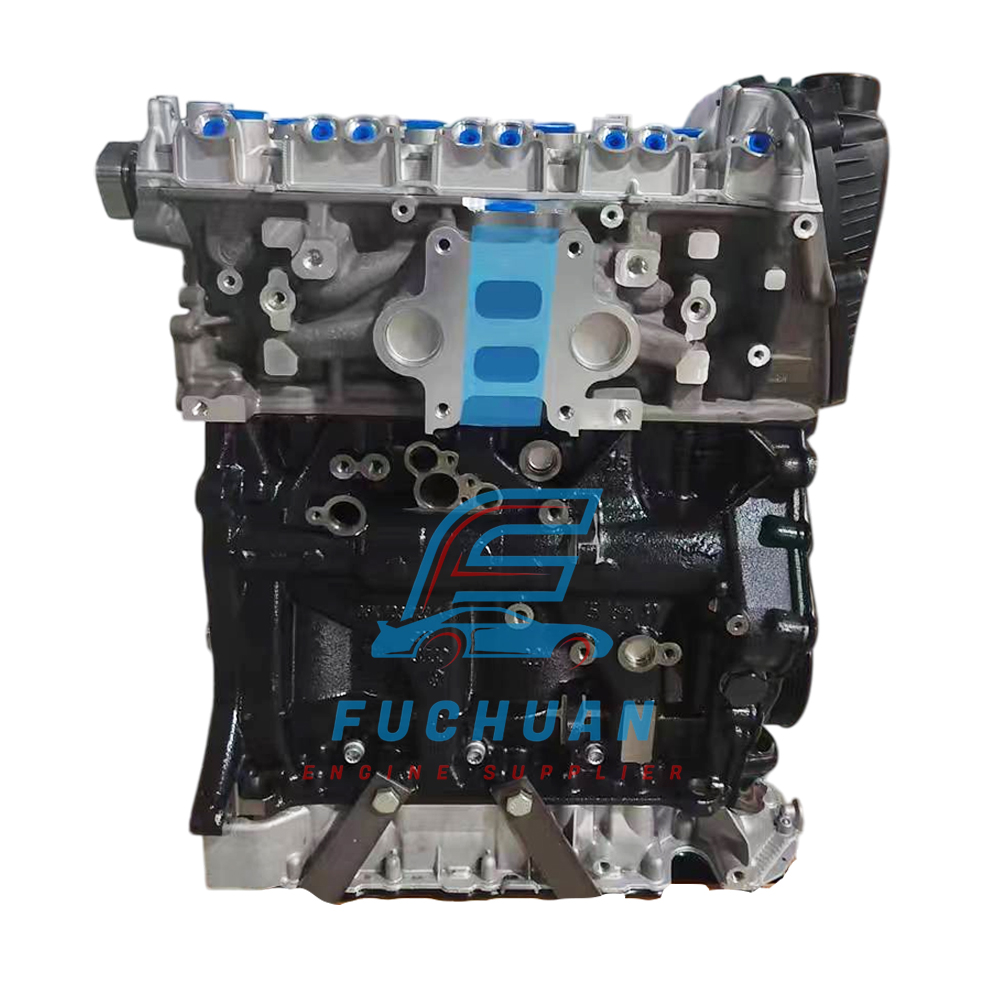

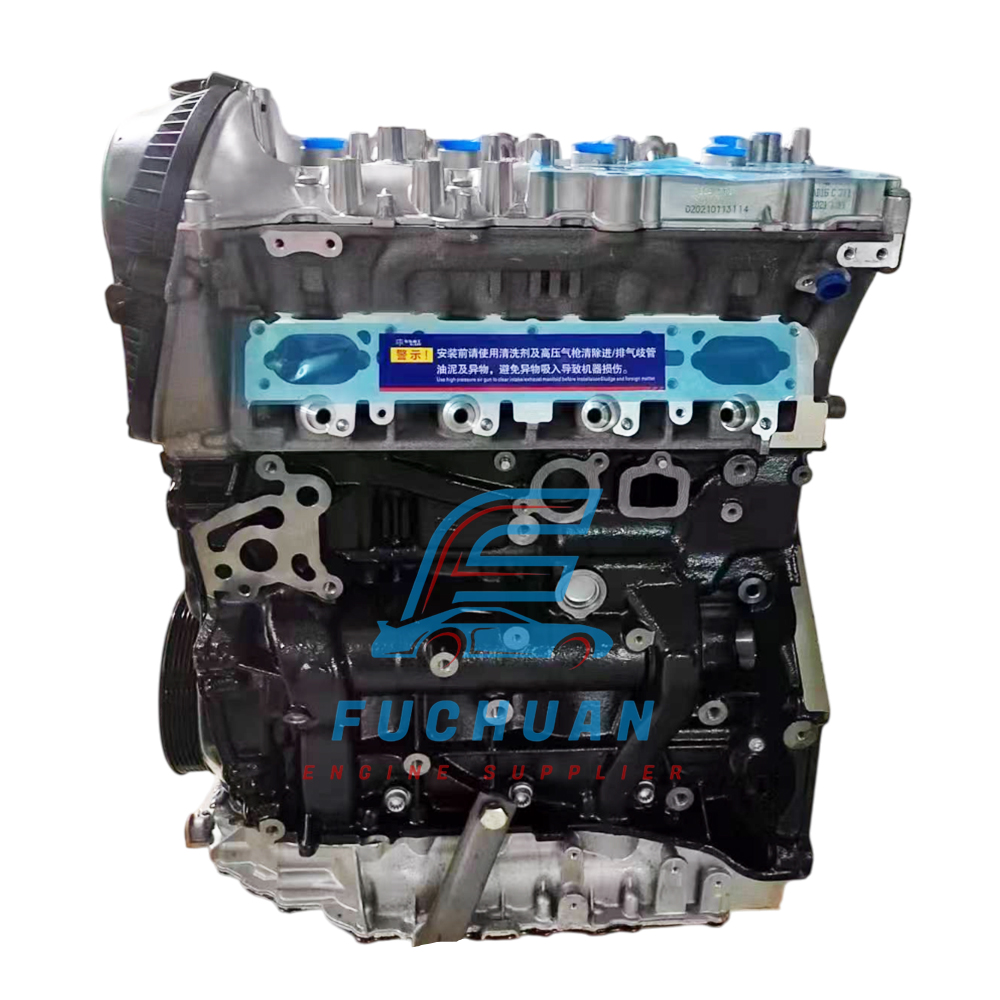

1.8L CDH EA888 Gen2 Engine Assembly for Audi A4 B8 A5

Technical Precision and EA888 Turbocharged Specifications

TheFuchuan Audi CDH Engine Assembly is engineered around a high-strength cast-iron cylinder block designed to handle heightened induction pressures while maintaining superior structural acoustic dampening. Utilizing an inline four-cylinder configuration, the internal dynamics are optimized for stable oil film retention and rapid torque delivery at lower engine speeds. Key technical specifications include:

• Displacement: 1,798 cc (1.8L)

• Bore x Stroke: 82.5 mm × 84.1 mm

• Compression Ratio: 9.6:1 (Optimized for Turbocharging)

• Power Output: Approx. 118 kW (158–160 hp) @ 4500–6200 rpm

• Torque: 250 Nm @ 1500–4500 rpm

This unit features a Chain-Driven Dual Overhead Camshaft (DOHC) valvetrain with 4 valves per cylinder and integrated variable intake valve timing. Stocking the Fuchuan Audi CDH Engine Assembly positions your automotive distribution business perfectly to capture the high-value maintenance market for premium German luxury vehicles.

Advanced Forced Induction and Oil System Metallurgy

A defining characteristic of the Fuchuan Audi CDH Engine Assembly is its advanced turbocharger and intercooler layout, which delivers a flat, broad torque curve starting at just 1500 rpm. Our rigorous manufacturing process ensures that the Fuchuan Audi CDH Engine Assembly features high-pressure Fuel Stratified Injection (FSI) and an upgraded, tensioner-corrected timing chain system to completely eliminate the premature wear patterns found in older factory variants. Furthermore, the engine is fitted with dual counter-rotating balance shafts and a variable-displacement oil pump. These engineering standards ensure that the Fuchuan Audi CDH Engine Assembly operates with maximum thermal stability and minimal NVH (Noise, Vibration, and Harshness) levels during high-stress driving conditions.

Stringent Quality Validation and High-Pressure Seals

To safeguard the investments of our international B2B partners, every Fuchuan Audi CDH Engine Assembly undergoes a multi-stage quality validation protocol before packaging. Given the precision required by European turbocharged direct-injection engines, each long block is subjected to a mandatory mechanical hot-run test to track oil pressure consistency, turbocharger wastegate function, and cooling circuit flow at operational temperatures. We perform a 100% cylinder leak-down check to guarantee that the Fuchuan Audi CDH Engine Assembly conforms strictly to factory compression limits. This meticulous quality control ensures that each unit arrives at your warehouse in peak mechanical condition, backed by our professional 12-month factory warranty.

Complete Long-Block Integration and Global Logistics

Guangzhou Fuchuan delivers a comprehensive, drop-in commercial solution. Rather than a bare, un sealed block, the Fuchuan Audi CDH Engine Assembly arrives as a highly integrated long-block unit including factory-torqued valve covers, high-pressure fuel rails, precision FSI fuel injectors, oil pan, and high-energy ignition coils. To guarantee safe overseas transit, each Fuchuan Audi CDH Engine Assembly is sprayed with an industrial anti-oxidation barrier and anchored within extra-reinforced, export-standard plywood crates. Supported by our 24/7 technical assistance and streamlined international shipping documentation, we make importing the Fuchuan Audi CDH Engine Assembly a smooth and highly profitable venture for wholesalers worldwide.
